Description
General specification:
--Power and speed:
--Cylinder block: UK Ricardo Euro III cylinder block assembly
--Electrical system:
Control monitor: will be installed on the top of the engine
Display panel: with 25/45m cables/wires packaged in the accessories case.
--Starting system: Starter 24V DC, self-excitation, 5.4KW; alternator 28V, 35A, with transistor voltage regulator
--Power and speed:
Rated power@speed: 190hp@1150rpm Overload power@speed: 210hp@1185rpm
--Engine type: 6 cylinder engines, water cooled, turbocharged, intercooler, electric start--Cylinder block: UK Ricardo Euro III cylinder block assembly
--Electrical system:
Control monitor: will be installed on the top of the engine
Display panel: with 25/45m cables/wires packaged in the accessories case.
--Starting system: Starter 24V DC, self-excitation, 5.4KW; alternator 28V, 35A, with transistor voltage regulator
--Fuel system: DELPHI injection pump, PS8500 high-pressure fuel pump.
Each cylinder has a cylinder head, four valve inlet and exhaust system, reliable work, convenient dis-assembly.
According to different occasions and requirements of the use, can choose electric pump or common rail pump. The built-in type oil cooler, safe and reliable.
Using the rear end of gear system (flywheel end) to reduce noise and improve the reliability. The water outlet pipe and the engine block are integral body, using double type thermostat.
Frame main bearing structure, the whole body rigidity is high, it is advantageous to improve the reliability and service life of the whole machine.
Double circulating cooling system, in which the cooler is arranged on the top of the flywheel housing, the structure is more compact.
Crankshaft belt pulley, water pump and generator by the multi wedge belt drive, the structure is simple.
|
Model |
D12.19 |
|
Type |
Vertical, in-line, water-cooled, four-stroke, direct injection |
|
Air inlet |
Turbocharged and intercooled |
|
NO. of cylinder |
6 |
|
Rated power/speed(hp/rpm) |
190hp/1150 |
|
Bore×stroke (mm×mm) |
126×155 |
|
NO. of valve/cylinder |
4 |
|
Crankshaft rotation direction（look from the free end） |
clockwise |
|
Ignition sequence |
1-5-3-6-2-4 |
|
Displacement (L) |
11.596L |
|
Rated fuel consumption rate (g/kW▪ h) |
215 |
|
Maximum combustion pressure (MPa) |
16 |
|
Compression ratio |
17 to 1 |
|
Oil fuel consumption ratio(%) |
0.4 |
|
Starting mode |
Electric starting |
|
Charge ratio |
1.85 |
|
Idle speed(r/min) |
600±50 |
|
Crankshaft type |
Integral type |
|
Net weight(kg) |
1200 |
|

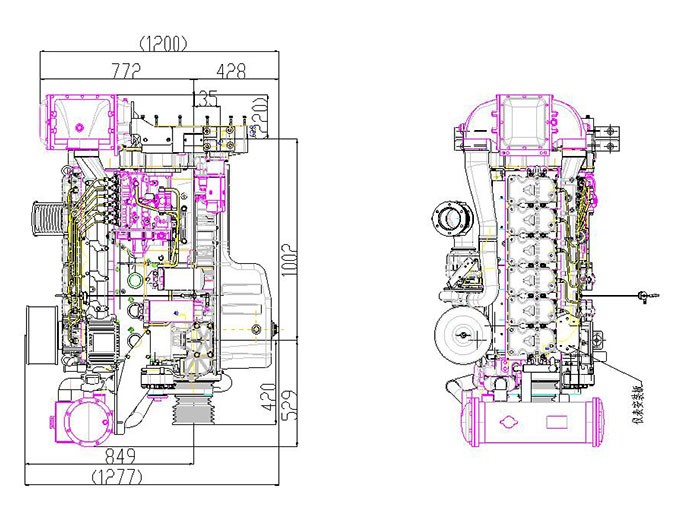

Dimensions L×W×H (mm) |
1751×947×1277 |
